SHVC-2QW5B-01

PCB information
property description
PCB type Prototype
Serial code SHVC-2QW5B-01
Company Super Home Video Computer - Nintendo (Note, I have found no primary source that this acronym is correct)
Number of chip slots 9
Number of ROM chips 2
ROM chip memory size 4Mb+2Mb or 4Mb+4Mb
ROM chip type EPROM
Special coprocessor/ additional chip DSP-x
Mapping type, HiROM/LoROM HiROM
SRAM 256k
SRAM decoder chip 74LS139
Board revision 01

Chip slot description
Slot ID description
U1 EPROM
U2 EPROM
U3 SRAM
U4 DSPx
U5 PLD
U6 74LS157
U7 74LS157
U8 74HCU04
U9 CIC

Mapping information

This info box is taken from the emulators BSNES and HIGAN, by Near. If your game does not run, and the mapping type of the game directs you to this page, you can copy this information into a file called "manifest.bml", in the same game folder directory. This should allow the emulator to properly load the game.

mapping information not found

Images

Image contributor: Matthew Callis

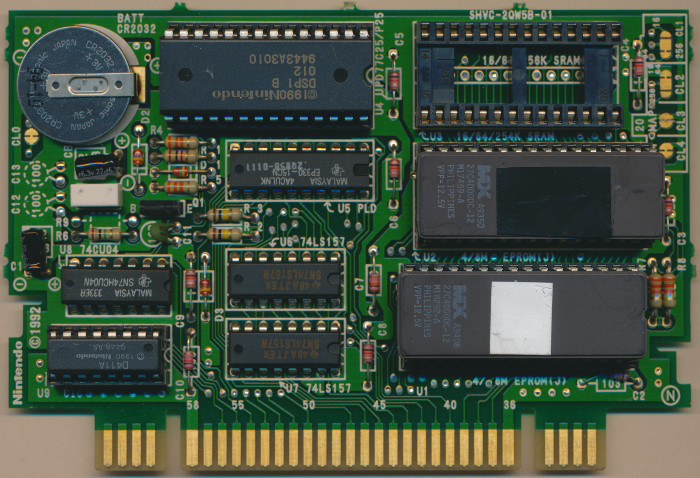

PCB Front:

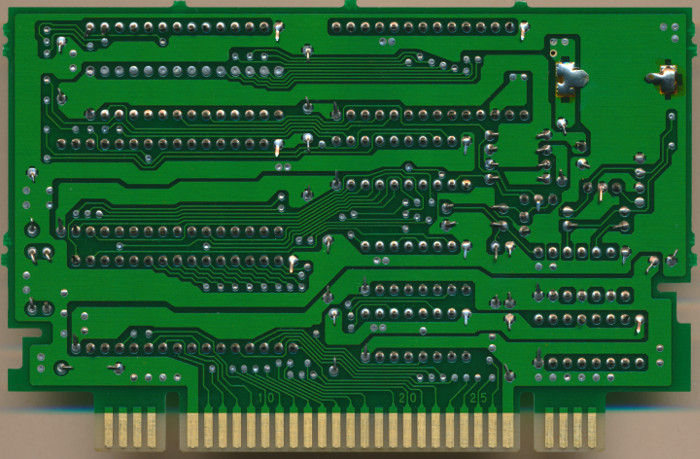

PCB Back:

Games that use this PCB type:

Game Name Region Serial Code
